High performance Customized self lubricating oil less sliding bearing with steel backing

Product Description

Product Description

 High performance Customized self lubricating oil less sliding bearing with steel backing

 A part of our products:

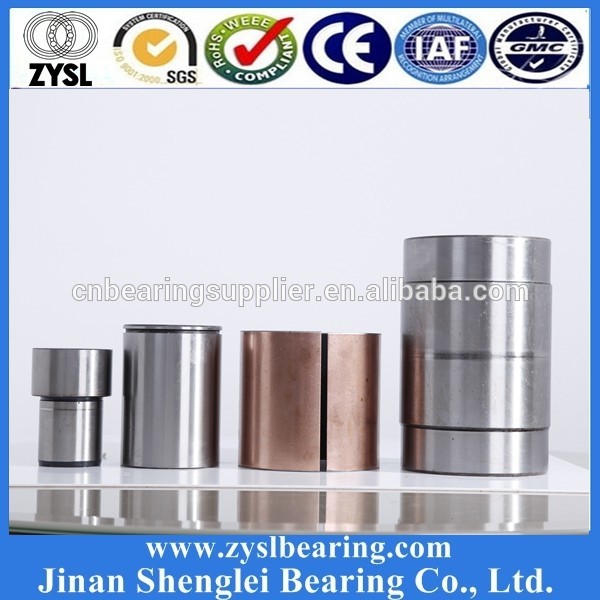

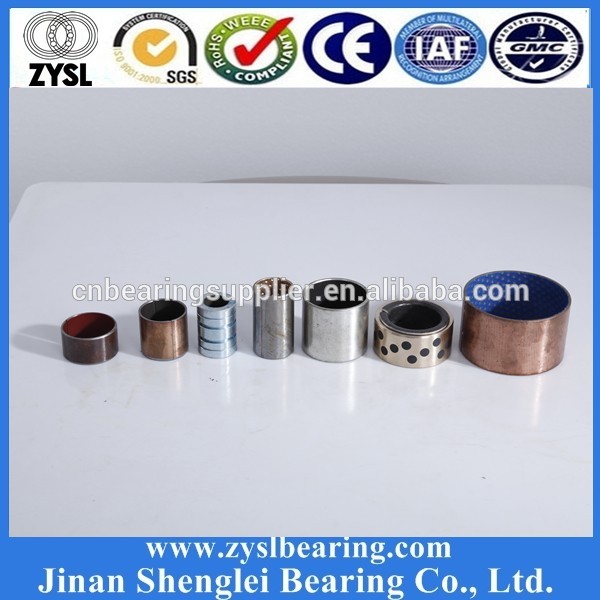

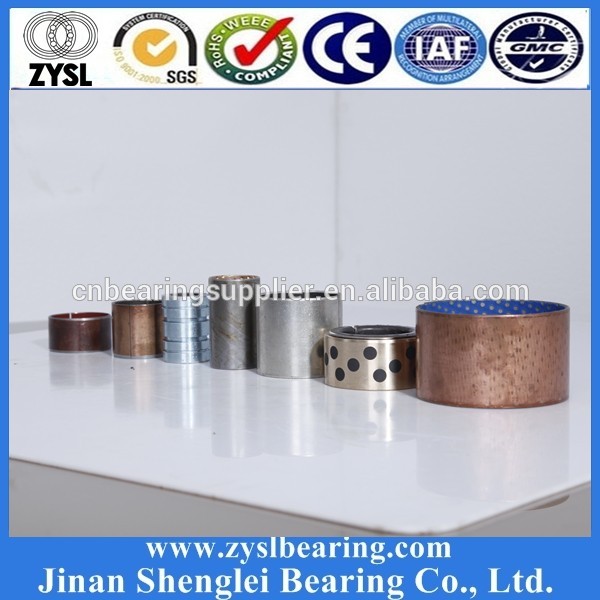

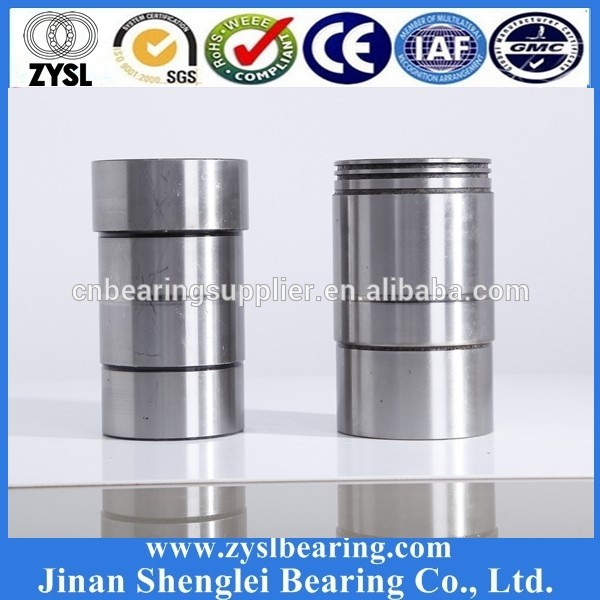

Pictures show

Drawing

Related models and specifications

Type

Load capacity(N/mm2)

PV limit(N/mm2*m/s)

Speed limit

(in oil)

Temp.limit

μ Frictio Coef.

Themal conductivity

Linear expansion

Static

Dynamic

Oscillating

Oil

Dry

(m/s)

(℃)

 (W/MK)

SF-1X

250

140

60

50

3.6

5.0

-195~270

0.04~0.20

13

11*10(-6)/k

SF-1T

250

140

60

60

4.3

10

-195~260

0.03~0.18

13

11*10(-6)/k

SF-1P

250

140

60

50

1.8

2.5

-195~270

0.04~0.20

13

11*10(-6)/k

SF-1W

250

140

60

50

3.6

5.0

-195~300

0.04~0.20

13

11*10(-6)/k

SF-1B

250

140

60

60

4.3

5.0

-195~270

0.04~0.18

18

21*10(-6)/k

SF-1D

250

140

60

50

3.8

3.0

-195~270

0.04~0.18

16

15*10(-6)/k

SF-1S

250

140

60

50

3.6

4.5

-195~270

0.04~0.20

16

15*10(-6)/k

SP-1SS

250

140

60

40

3.0

2.5

-195~270

0.04~0.25

13

15

Decription

Bushing is made of three layer composite material. It's backed with copper-plated steel with porous bronze sintered on the steel and polymers imbedded into the bores of the bronze.The steel back provides the bush made by PVB010 Bushing with stronger mechanic strength and load capability.By combining the metals and the polymers together,its products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication.Moreover,the steel back is plated with a erosion-prevention layer. This type of self lubricating bearing is also callde DU Bushes,DU Bearing, DU bushing bearing,DU sleeve bush,teflon bushing Bearing,PTFE coated bearing bushing,PAP P10 Bushing bearing and etc.



Features of Bushing:

  • Maintenance-free!
  • No lubrication required (PTFE composite)
  • Minimum wall thickness, minimum space requirements
  • Accommodation of heavy loads
  • Wide range of temperatures
  • Good sliding properties
  • High wear resistance

Application of Bushing:





Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.

Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.



Availability of Bushing:





DU Straight Bushing

DU Flanged Bearing

DU Thrust Washer

DU Strip
