non standard 608 plastic pulley bearing for door slide

Product Description

Product Description

non standard 608 plastic pulley bearing for door slide

 A part of our products:

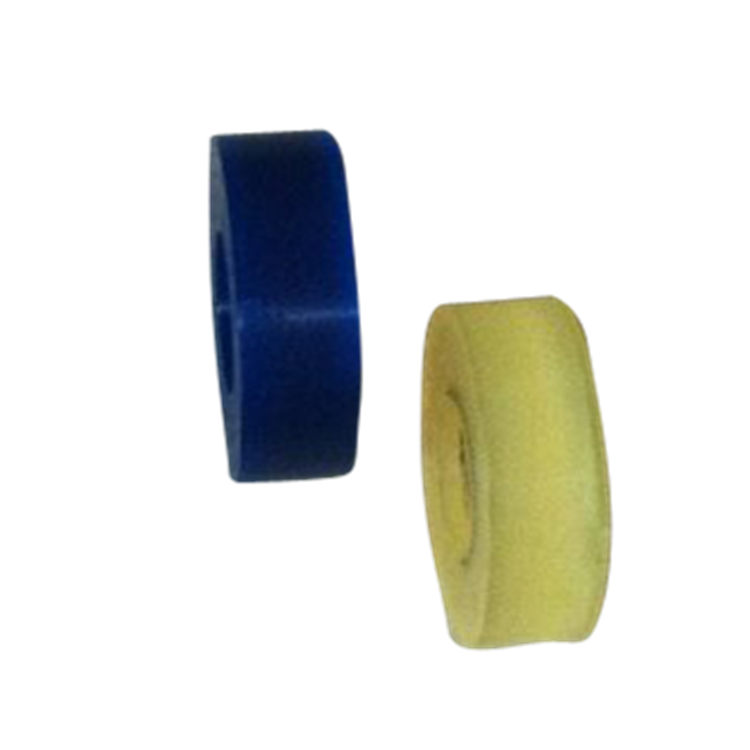

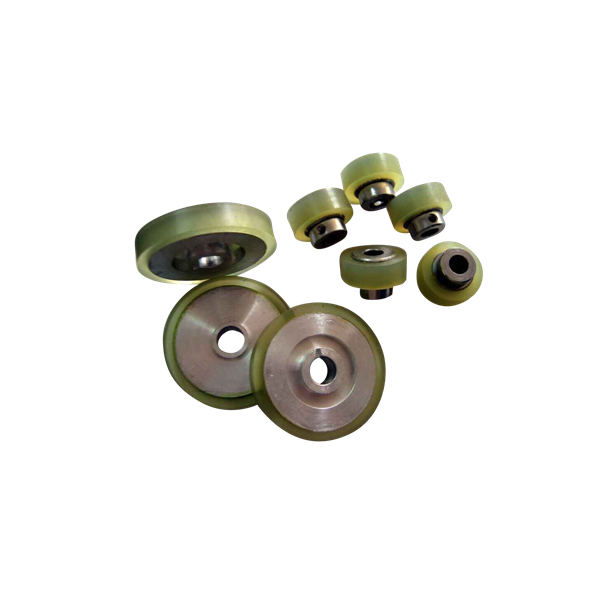

Pictures show

Drawing

Related models and specifications

Bearing No. I.D O.D W Loading Rating(KN) Steel Ball Parameter Max Speed
d D B Dynamic Static No. Size Grease Oil
mm inch mm inch mm inch Cr Cor mm r/min r/min
6200 10 0.3937 30 1.1811 9 0.3543 5.10 2.39 8 4.763 25000 30000
6201 12 0.4724 32 1.2598 10 0.3937 6.10 2.75 7 5.953 22000 26000
6202 15 0.5906 35 1.3780 11 0.4331 7.75 3.60 8 5.953 19000 23000
6203 17 0.6693 40 1.5748 12 0.4724 9.60 4.60 8 6.747 18000 21000
6204 20 0.7874 47 1.8504 14 0.5512 12.80 6.65 8 7.938 16000 18000
6205 25 0.9843 52 2.0472 15 0.5906 14.00 7.85 9 7.938 13000 15000
6206 30 1.1811 62 2.4409 16 0.6299 19.50 11.30 9 9.525 11000 13000
6207 35 1.3780 72 2.8346 17 0.6693 25.70 15.30 9 11.112 9800 11000
6208 40 1.5748 80 3.1496 18 0.7087 29.10 17.80 9 12.000 8700 10000
6209 45 1.7717 85 3.3465 19 0.7480 32.50 20.40 10 12.000 7800 9200
6210 50 1.9685 90 3.5433 20 0.7874 35.00 23.20 10 12.700 7100 8300
6211 55 2.1654 100 3.9370 21 0.8268 43.50 29.20 10 14.288 6400 7600
6212 60 2.3622 110 4.3307 22 0.8661 52.50 36.00 10 15.081 6000 7000
6213 65 2.5591 120 4.7244 23 0.9055 57.50 40.00 10 16.669 5500 6500
6214 70 2.7559 125 4.9213 24 0.9449 62.00 44.00 11 16.462 5100 6000
6215 75 2.9528 130 5.1181 25 0.9843 66.00 49.50 11 17.462 4800 5600
6216 80 3.1496 140 5.5118 26 1.0236 72.50 53.00 11 18.256 4500 5300
6217 85 3.3465 150 5.9055 28 1.1024 83.50 64.00 11 19.844 4200 5000
6218 90 3.5433 160 6.2992 30 1.1811 96.00 71.50 10 22.225 4000 4700

Introduction of Deep Groove Ball Bearing:

Deep groove Ball Bearing mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and varations of structure, they are suitable for precision instruments, low noise motors, automobiles,motorcycles,and other common machinery, as a widely used type of bearings in machinery industry.



Sealed Deep Groove Ball Bearings
Deep groove Ball Bearings with sealing disks (contacting gaskets) or covering disks (non-contacting gaskets) allow simple designs. Bearings are offered both with one and two sealing or covering disks. Bearings with two-side gaskets are filled with top quality grease. Sealed bearings can be used in a temperature range from – 30 °C to max. 110 °C (short term) for contacting and up to max. 120 °C for non-contacting gaskets. One should note here, that the period of grease use will reduce at a permanent temperature of > 70 °C. Special greases are offered for such cases.

Deep groove ball bearings with annular groove in outer ring
Deep groove ball bearings with annular groove in the outer ring simplify the design in many cases because they can be fixed simply by a snap ring and axially in the housing to save space. These bearings with or without snap ring are available only on request.

Deep groove ball bearings tested for noise
As standard, deep groove ball bearings are subjected to noise tests up to bore parameter 12. In addition, a 100 % rolling test is carried out. These bearings can also be subjected to a noise test if required by the customer (on request only).

Cages
Deep groove ball bearings without cage suffix are provided with a steel sheet cage. Differing cage designs are indicated at the bearing type as bearing symbol (suffix). Deep groove ball bearings with cages of fiber-glass reinforced polyamide 66 are suitable for temperatures of maximum 120 °C for longer periods of time. When using oil lubrication (for non-sealed bearings), the additives contained in the oil may affect the period of use of the cage if the temperature exceeds 100 °C for a longer period of time. In addition, deep groove ball bearings with brass cage and current-insulated designs are available on request.



Single-row deep groove ball bearings accept radial and axial forces and can thus be used in a wide range of applications. They have a simple design, are self-retaining, suitable for high up to very high speeds and resistant in operation and during maintenance and they are offered at a very favorable price. Due to these characteristics, self-aligning deep groove ball bearings are the anti-friction bearings which are used most. The standard version of SLF deep groove ball bearings is provided with a recess for inserting sealing and/or covering disks. The only exception is series 160... . Here, only a version without sealing and/or covering disk can be supplied. (Exception 16006.2ZR)
