95x130x18 delrin ball bearing 61919-ZN

Product Description

Product Description

 A part of our products:

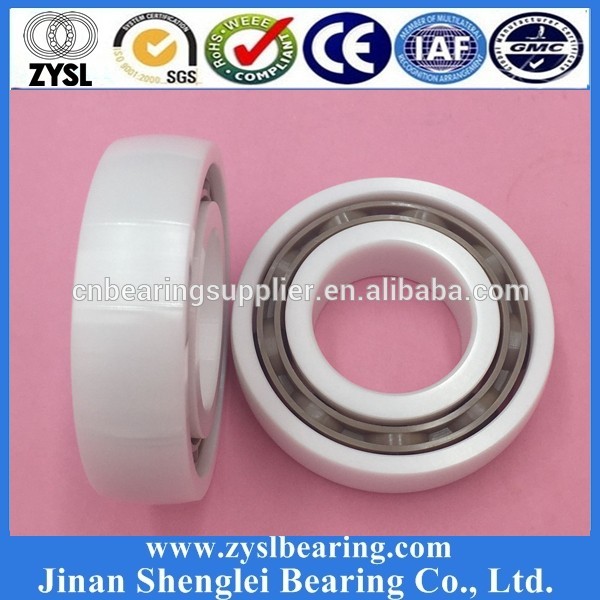

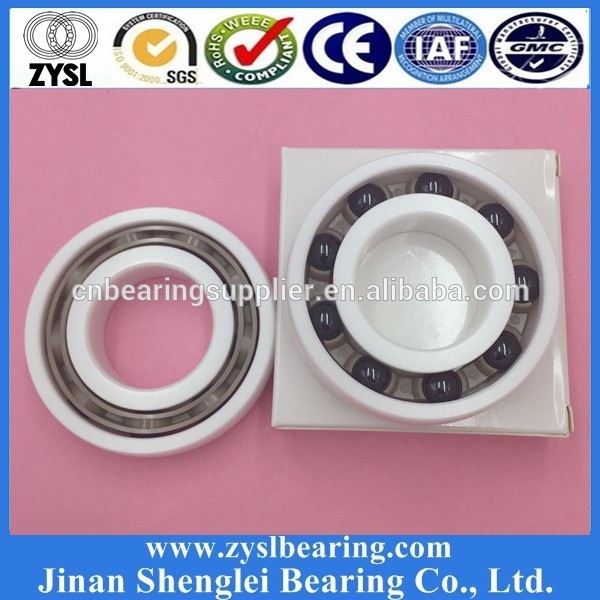

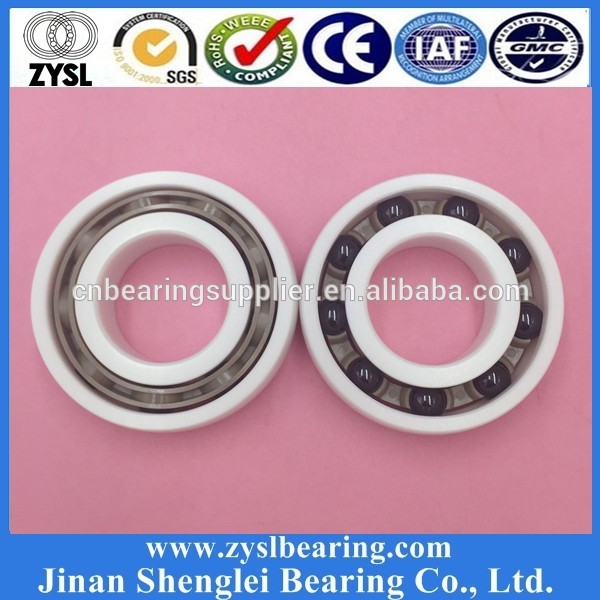

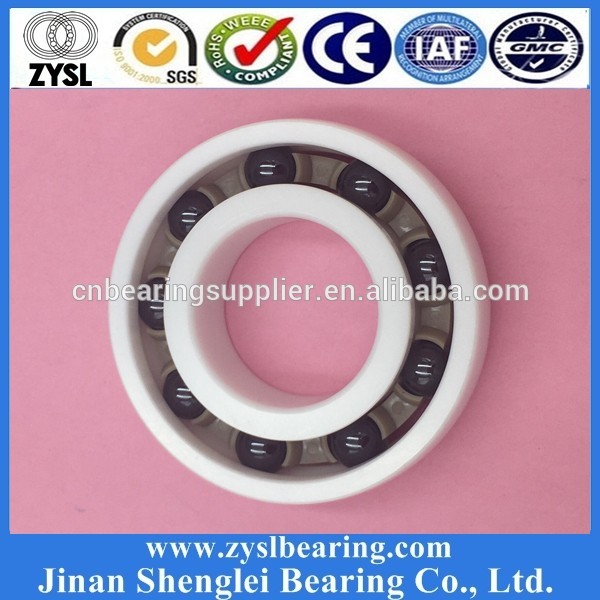

ZYSL 95x130x18 delrin Ball Bearing 61919-ZN

Drawing of 95x130x18 delrin ball bearing 61919-ZN

Related models and specifications of 95x130x18 delrin

ball bearing 61919-ZN

New Irem    Inner Size    Outer Size   Thickness   Weight         Cage Type
61900 10 22 6 0.0078 Steel
61901 12 24 6 0.0099

Steel

61902 15 28 7 0.0158 Steel
61903 17 30 7 0.0166 Steel
61904 20 37 9 0.0358 Steel
61905 25 42 9 0.0409 Steel
61906 30 47 9 0.0513 Steel
61907 35 55 10 0.078 Steel
61908 40 52 12 0.0112 Steel
61909 45 68 12 0.0139 Steel
61910 50 72 12 0.179 Steel
61911 55 80 13 0.179 Steel
61912 60 85 13 0.193 Steel
61913 65 90 13 0.206 Steel
61914 70 100 16 0.341 Steel
61915 75 105 16 0.362 Steel
61916 80 110 16 0.381 Steel
61917 85 120 18 0.527 Steel
61918 90 128 18 0.559 Steel
61919 95 130 18 0.586 Steel
61920 100 140 20 0.786 Steel
61921 105 145 20 0.805 Steel
61922 110 150 20 0.84 Steel
61924 120 165 22 1.15 Steel
61926 130 180 24 1.56 Steel
61928 140 190 24   Steel
61934 170 230 28   Steel
61936 180 250 33 5.4 Steel
61938 190 260 33 5.864 Steel
61940 200 280 38 7.3 Steel
61944 200 300 38 7.6 Steel
61948 240 320 38 9.6 Steel
61952 260 360 46 15.86 Steel
61960 300 420 56 24.5 Steel
61964 320 440 56 27.0 Steel
61968 340 460 56 27.5 Steel
619/500 500 670 78 79.5 Steel
619/560 560 750 85 111.0 Steel

Introduction of Deep Groove Ball Bearing:

Deep groove ball bearing mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and varations of structure, they are suitable for precision instruments, low noise motors, automobiles,motorcycles,and other common machinery, as a widely used type of bearings in machinery industry.



Sealed Deep Groove Ball Bearings
Deep groove Ball Bearings with sealing disks (contacting gaskets) or covering disks (non-contacting gaskets) allow simple designs. Bearings are offered both with one and two sealing or covering disks. Bearings with two-side gaskets are filled with top quality grease. Sealed bearings can be used in a temperature range from – 30 °C to max. 110 °C (short term) for contacting and up to max. 120 °C for non-contacting gaskets. One should note here, that the period of grease use will reduce at a permanent temperature of > 70 °C. Special greases are offered for such cases.

Deep groove ball bearings with annular groove in outer ring
Deep groove ball bearings with annular groove in the outer ring simplify the design in many cases because they can be fixed simply by a snap ring and axially in the housing to save space. These bearings with or without snap ring are available only on request.

Deep groove ball bearings tested for noise
As standard, deep groove ball bearings are subjected to noise tests up to bore parameter 12. In addition, a 100 % rolling test is carried out. These bearings can also be subjected to a noise test if required by the customer (on request only).

Cages
Deep groove ball bearings without cage suffix are provided with a steel sheet cage. Differing cage designs are indicated at the bearing type as bearing symbol (suffix). Deep groove ball bearings with cages of fiber-glass reinforced polyamide 66 are suitable for temperatures of maximum 120 °C for longer periods of time. When using oil lubrication (for non-sealed bearings), the additives contained in the oil may affect the period of use of the cage if the temperature exceeds 100 °C for a longer period of time. In addition, deep groove ball bearings with brass cage and current-insulated designs are available on request.



Single-row deep groove ball bearings accept radial and axial forces and can thus be used in a wide range of applications. They have a simple design, are self-retaining, suitable for high up to very high speeds and resistant in operation and during maintenance and they are offered at a very favorable price. Due to these characteristics, self-aligning deep groove ball bearings are the anti-friction bearings which are used most. The standard version of SLF deep groove ball bearings is provided with a recess for inserting sealing and/or covering disks. The only exception is series 160... . Here, only a version without sealing and/or covering disk can be supplied. (Exception 16006.2ZR)
