linear motion ball block bearing / slide blocks sce25uu sce30uu sce40uu sce50u sce16uu sce12uu sce8uu for Engineering machines

Product Description

Product Description

linear motion ball block bearing / slide blocks sce25uu sce30uu sce40uu sce50u sce16uu sce12uu sce8uu for Engineering machines

A part of our products:

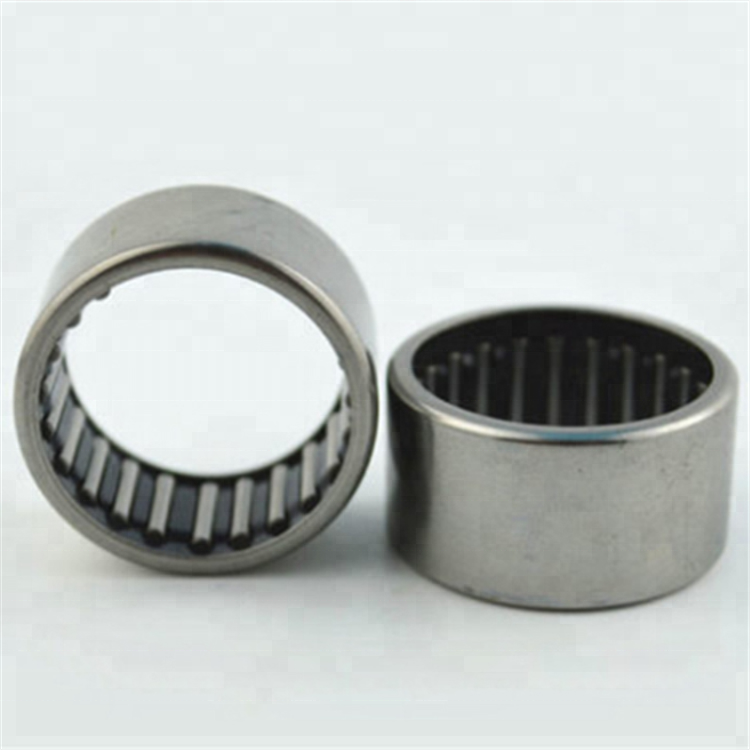

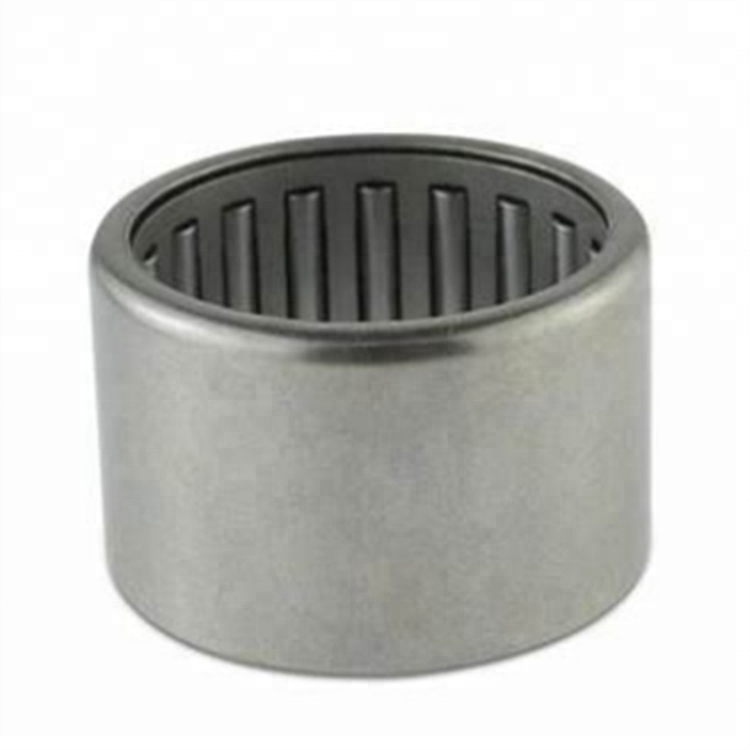

Pictures show

Drawing

Deacriptions

 Liner bearing is used in end supported applications, where spanning or bridging a gap is required.

They have the greatest range of industrial application. However, care must be taken to select a

shaft diameter to minimizes deflection. Precisely ground bearing track and plastic retainers

provide smooth and quiet performance. Seals at both ends keep out contaminants and retain

lubrication giving maximum travel life. The outer circumference of Linear Bearing is a cylindrical

shape with highest accuracy, and to use is possible over a wide range of applications.



A linear-motion bearing is a kind of bearing that aims at offering free motion in one dimension.

The structure of the liner motion bearing is that a retainer is built in the outer ring. And the

retainer is equipped with many steel balls doing infinite circulatory movement. Besides, the two

ends of the retainer are fixed with the spring collar. There is a side window in the straight track.

This section is allowing the loaded balls and the axis to do the rolling contact. These products can

move relatively under a very low coefficient of friction. Therefore, the linear motion bearings are

appropriate for many mechanical equipments, automation equipments, and energy-saving equipments,

etc.


Like many other kinds of bearing products, linear motion bearings have a quite wide range of application.

At present, they are more widely used in the electronics, machinery, equipment, robots, tools, food

machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machine

tools, automobiles and many other mechanical industries.


There are various kinds of linear motion bearing. Generally, it can be divided into rolling-element

bearings and plane bearings. The former has the characteristics of smooth motion, low friction,

high rigidity and long life. It is quite easy to maintain and replace these products. The latter

category is very similar in design with the rolling-element bearings. They can perform on hardened

steel or stainless steel raceways.

Related models and specifications

Model d D W L F T B C

Used

with

Mass

(g)

SCE16UU 20 22.5 45 45 33 9 32 30 LM16UU 150
SCE20UU 23 24 48 50 39 11 35 35 LM20UU 200
SCE25UU 27 30 60 65 47 14 40 40 LM25UU 450
SCE30UU 33 35 70 70 56 15 50 50 LM30UU 630
SCE35UU 37 40 80 80 63 18 55 55 LM35UU 925
SCE40UU 42 45 90 90 72 20 65 65 LM40UU 1330
SCE50UU 53 60 120 110 92 25 94 80 LM50UU 3000
MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS MOUNTING DIMENSION WEIGHT(kg)
H E W L F T K J h1 θ B N M × P S1 S2
SBR10-200 10 18 16 32 200 13.5 4 8.9 12.4 4.7 80° 22 50 1×100 4.5 M4 0.110
SBR10-300 300 50 2×100 0.160
SBR10-400 400 50 3×100 0.220
SBR10-500 500 50 4×100 0.270
SBR10-600 600 50 5×100 0.330
SBR12-200 12 20.46 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140
SBR12-300 300 50 2×100 0.210
SBR12-400 400 50 3×100 0.280
SBR12-500 500 50 4×100 0.350
SBR12-600 600 50 5×100 0.420
SBR13-200 13 21 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140
SBR13-300 300 50 2×100 0.210
SBR13-400 400 50 3×100 0.280
SBR13-500 500 50 4×100 0.350
SBR13-600 600 50 5×100 0.420
SBR16-200 16 25 20 40 200 17.8 5 11.7 18.5 8 80° 30 25 1×100 5.5 M5 0.200
SBR16-300 300 75 1×100 0.300
SBR16-400 400 50 2×100 0.400
SBR16-500 500 25 3×100 0.500
SBR16-600 600 75 3×100 0.600
SBR20-200 20 27 22.5 45 200 17.7 5 10 19 8 50° 30 25 1×100 5.5 M6 0.200
SBR20-300 300 75 1×100 0.300
SBR20-400 400 50 2×100 0.400
SBR20-500 500 25 3×100 0.510
SBR20-600 600 75 3×100 0.610
SBR25-200 25 33 27.5 55 200 21 6 12 21.5 8 50° 35 25 1×100 6.5 M6 0.290
SBR25-300 300 50 1×100 0.430
SBR25-400 400 100 1×100 0.580
SBR25-500 500 50 2×100 0.730
SBR25-600 600 100 2×100 0.880
SBR30-200 30 37 30 60 200 22.8 7 13 26.5 10.3 50° 40 25 1×150 6.5 M8 0.360
SBR30-300 300 50 1×200 0.550
SBR30-400 400 100 1×200 0.730
SBR30-500 500 50 2×200 0.920
SBR30-600 600 100 2×200 1.100

LM linear bearing:

LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,

LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU

LME linear bearing:

LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU

LMB linear bearing:

LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU

LM Open Series linear bearing:

 LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU

KH type linear bearing:

KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP,

KH2540PP,KH3050PP,KH4060PP,KH5070PP

Stell Cage Linear Bearing:

 LM8GA,LM10GA,LM12GA,LM16GA,LM20GA,

LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA

SDM series Steel cage linear bearing(As same as Ease SDM series):

SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150

Flange Type Linear Bearing:

LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU,

LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU

LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU,

LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU

LMT6UU, LMT8UU, LMT10UU, LMT12UU, LMT13UU, LMT16UU, LMT20UU, LMT25UU, LMT30UU.

Linear Slide Unit:

1.Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,

SC40UU, SC50UU,SC60UU (normal type)

SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type)

2.Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU(Long type) TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block)

Shaft Support: SK/SHF SHAFT SUPPORT:SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50,
