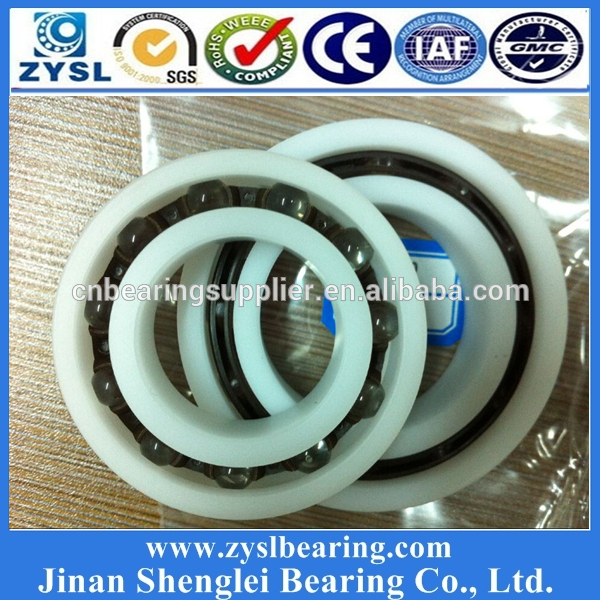

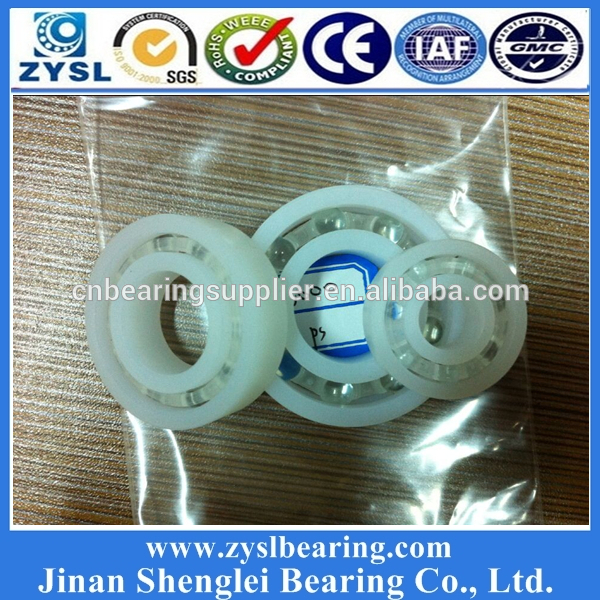

Plastic Deep Groove Ball Bearing 6205 With POM or PA or UPE Bearing

Product Description

Product Description

 A part of our products:

Plastic Deep Groove Ball Bearing 6205 With POM or PA

or UPE Bearing



•Cage

In daily operations, cage will be subjected not only to mechanical action from friction, tension and inertial force, but to chemical reaction from lubricants, additives, solvents or coolants. Therefore, design and materials of cage are very inportant for its performance and the reliability of bearing in usage.

ZYSL Bearings offers the following kinds of cages for deep groove ball bearings:



•Materials of Bearings

Materials for bearing rings and parts largely determine the bearing's performance and life. ZYSL Bearings puts more efforts to select materials for bearing ring and part suppliers in a rigorous manner.

Materials and components of bearing rings for ZYSL Bearings are provided by the world's top suppliers,especially for serving bearing manufacturers, fundamentally solving the issue that our bearings lag behind imported bearings in terms of materials for a long time.

ZYSL Bearings boasts a set of strict incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic

inspection, including analysis of material composition, metallographic analysis, accuracy check, assembly test, etc.



•Materials for Bearing Ring and Roller Body

Bearing ring and roller body are mainly made of high-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.

Chemical Composition(%)

NO.

C

Mn

Si

Cr

S

P

Ni

Cu

HB

<

GCr15

DIN 100 GCr6

JIS UJ2

AISI52100



0.95~1.05

0.20~0.4

0.15~0.35

1.30~1.65

0.02

0.027

0.3

0.25

170~207

Material for bearing ring and roller body mainly consists of high C-Cr bearing steel.



•Material of cages

Material of cages need good wear resistance, stable size and metal strength. Therefore, operation environment should be mainly considered in selection of material of cages.



Cold-rolled Steel Cage

These light cages hold a high strength with reduced friction and wear in an effective way after surface treatment. The following table covers compositions of material for cold-rolled steel sheet.

No.

Chemical Composition%

JISG 3141

SPCC

C

Si

Mn

P

S

Ni

Cr

<0.12

-

<0.5

<0.04

0.045

-

-

Brass Cage

Brass cage is adopted in small and medium bearings. However, brass cage is not suitable for compressors with ammonia cooling due to potential seasonal cracking of brass. It is recommended to replace it with iron cage.



Nylon cage

According to the type and usage of bearings, nylon cages are widely adopted, but they are inappropriate for environments where the temperature is above 120℃ or below 40 ℃. Most of cast molding cages adopt nylon PA66 material, with or without glass fiber reinforcement whose advantage is a good combination of strength and elasticity.



•Materials for Dust Shield and Sealed ring



Material for dust shield



ZYSL Bearings use cold-rolled tin plate as the standard mateiral for dust shields, but also use stainless steel of AISI300 specification sometimes.



Material for seal ring

Seal rings are mainly made for high temperature, fluoro rubbers and silicon rubbers are widely used as well.



Applications:

Deep Groove Ball Bearings can be used for transmission, instrumentation, motors, appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery , roller skate style , yo-yo , precision instruments, low noise motors, automobiles , motorcycles vehicles.

Pictures show:

Drawing of Plastic Deep Groove Ball Bearing 6205 With POM or PA or UPE Bearing

Related models and specifications of Plastic Deep Groove Ball Bearing 6205 With POM or PA or UPE Bearing

Bearing No. I.D O.D W Loading Rating(KN) Steel Ball Parameter Max Speed
d D B Dynamic Static No. Size Grease Oil
mm inch mm inch mm inch Cr Cor mm r/min r/min
6200 10 0.3937 30 1.1811 9 0.3543 5.10 2.39 8 4.763 25000 30000
6201 12 0.4724 32 1.2598 10 0.3937 6.10 2.75 7 5.953 22000 26000
6202 15 0.5906 35 1.3780 11 0.4331 7.75 3.60 8 5.953 19000 23000
6203 17 0.6693 40 1.5748 12 0.4724 9.60 4.60 8 6.747 18000 21000
6204 20 0.7874 47 1.8504 14 0.5512 12.80 6.65 8 7.938 16000 18000
6205 25 0.9843 52 2.0472 15 0.5906 14.00 7.85 9 7.938 13000 15000
6206 30 1.1811 62 2.4409 16 0.6299 19.50 11.30 9 9.525 11000 13000
6207 35 1.3780 72 2.8346 17 0.6693 25.70 15.30 9 11.112 9800 11000
6208 40 1.5748 80 3.1496 18 0.7087 29.10 17.80 9 12.000 8700 10000
6209 45 1.7717 85 3.3465 19 0.7480 32.50 20.40 10 12.000 7800 9200
6210 50 1.9685 90 3.5433 20 0.7874 35.00 23.20 10 12.700 7100 8300
6211 55 2.1654 100 3.9370 21 0.8268 43.50 29.20 10 14.288 6400 7600
6212 60 2.3622 110 4.3307 22 0.8661 52.50 36.00 10 15.081 6000 7000
6213 65 2.5591 120 4.7244 23 0.9055 57.50 40.00 10 16.669 5500 6500
6214 70 2.7559 125 4.9213 24 0.9449 62.00 44.00 11 16.462 5100 6000
6215 75 2.9528 130 5.1181 25 0.9843 66.00 49.50 11 17.462 4800 5600
6216 80 3.1496 140 5.5118 26 1.0236 72.50 53.00 11 18.256 4500 5300
6217 85 3.3465 150 5.9055 28 1.1024 83.50 64.00 11 19.844 4200 5000
6218 90 3.5433 160 6.2992 30 1.1811 96.00 71.50 10 22.225 4000 4700
