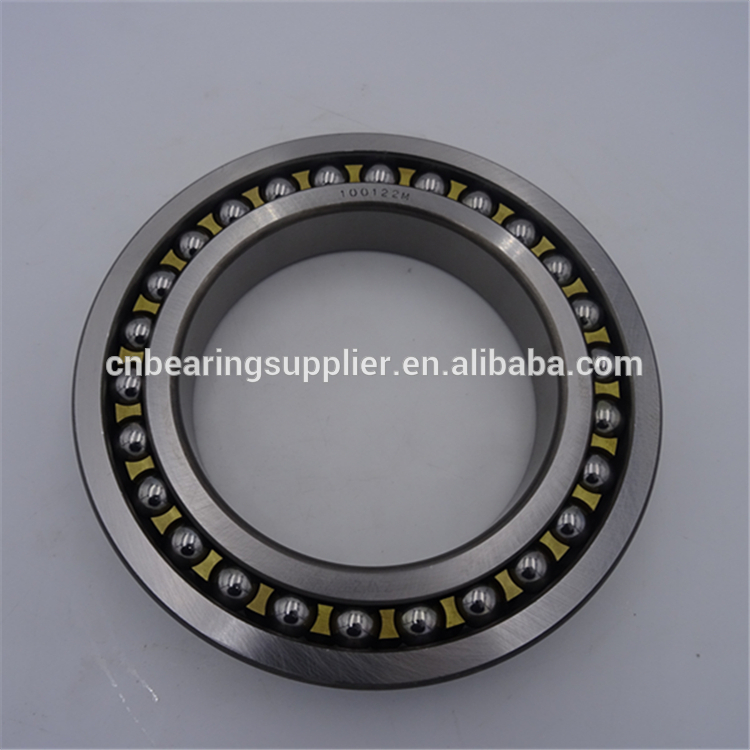

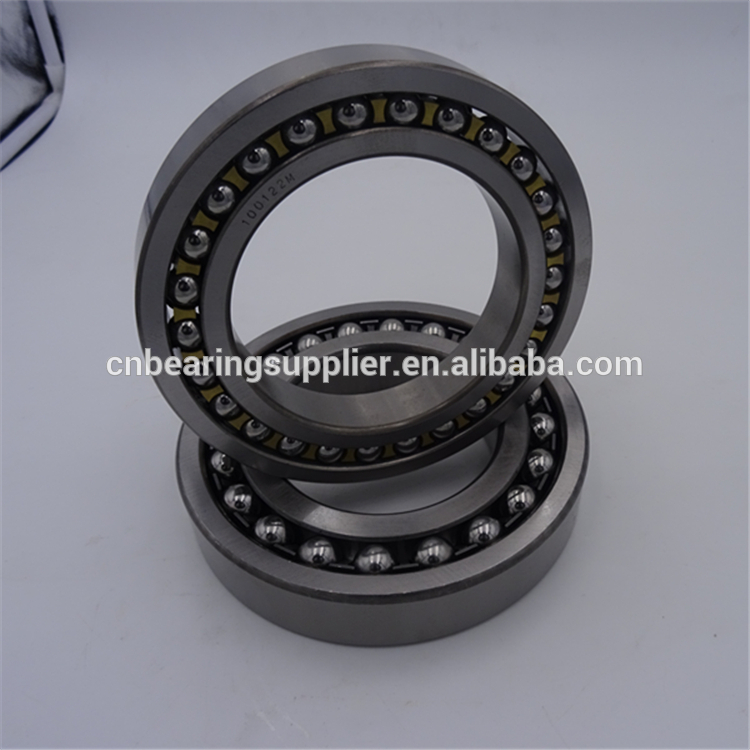

Large stocks 100122M Self Aligning Ball Bearing

Product Description

Product Description



Brief introduction of Large stocks 100122M Self Aligning Ball Bearing:

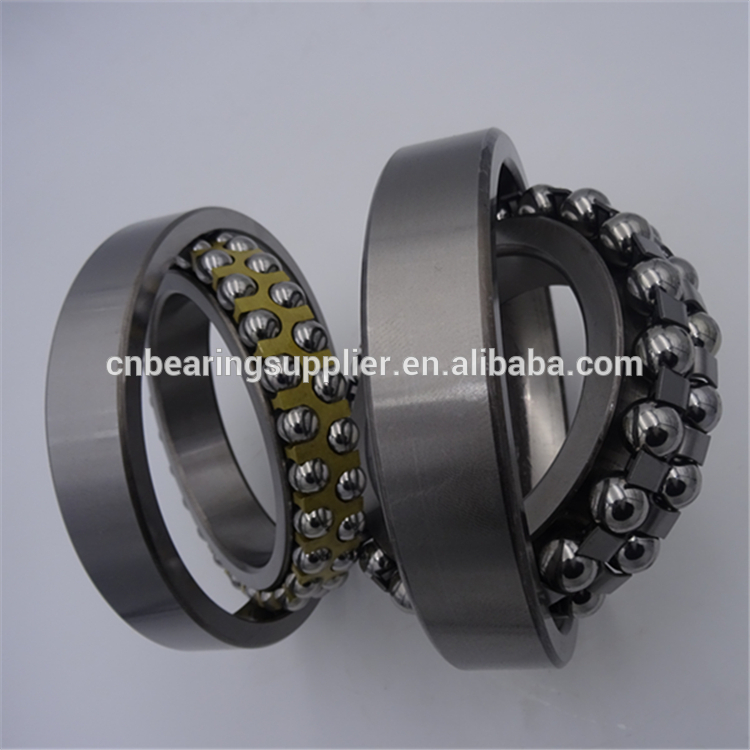

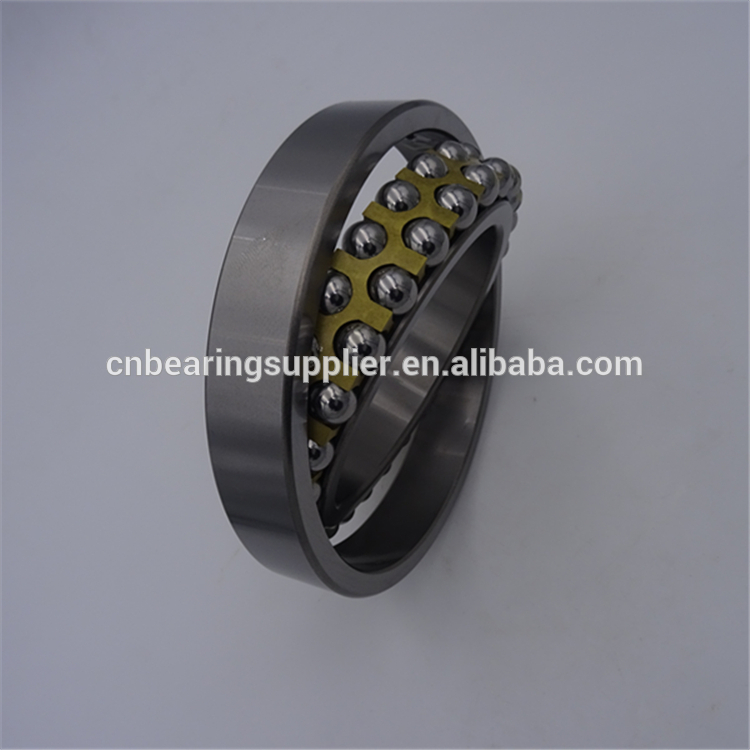

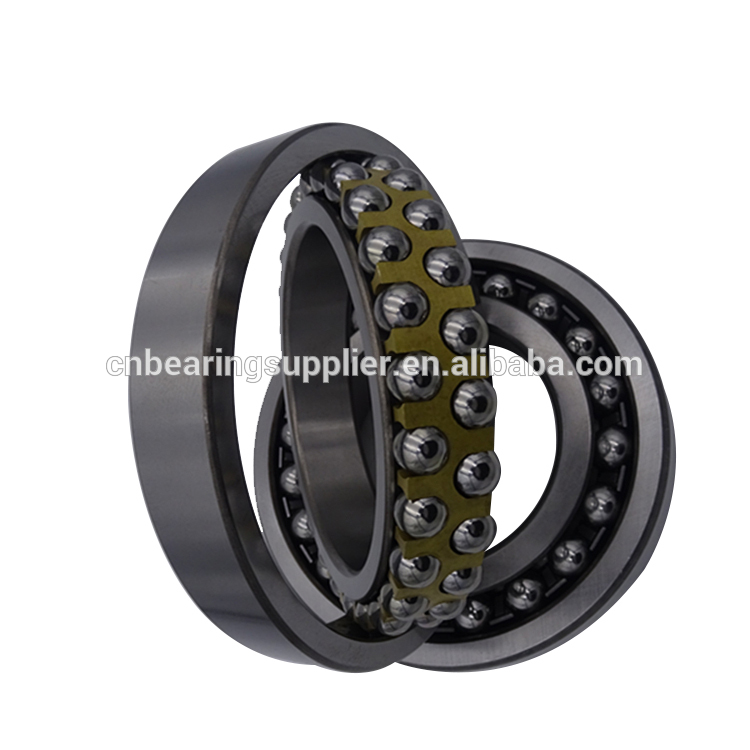

The components of the self aligning ball bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning Ball Bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-Aligning Ball Bearings have two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the Self-Aligning Ball Bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Features of Large stocks 100122M Self Aligning Ball Bearing:
When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.

Product line:

Mini-series: 10x, 12x, 13x
General Series: 12xx, 13xx, 22xx 23xx

Typical applications:
Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.



Suffix definitions of Self-aligning ball bearings:
C3: radial clearance than ordinary clearance
K: 1/12 taper tapered bore
K30: 1/30 taper tapered bore
M: Ball guided machined brass cage
2RS: with both ends of closures
TV: ball guide glass fiber reinforced polyamide (nylon) solid cage









Packaging & Shipping

MOQ IS ONE PIECE

TERMS OF PAYMEMT: T/T

SAMPLE AVAILABLE

PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT

SHIPMENT: Logistics forwarder or Express service, according to quantity

Delivery time: 3-15 days according to quantity required

Quality: Export standard

Price term: FOB





Company Information



Jinan ZYSL bearing Co., Ltd.are manufacturer and supplier from Jinan Shandong China , Which is on the line of bearing for more than 20 years experience .We integrate R&D,production and export of bearings.



So one of our biggest advantage compared others is that we can provide the best factory price based on the same good quality.Our employees are all received professional training.



And until now we has established a professional sales network to help customers get products information at the first time.Besides our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.The annual production capability is more than 960 million units.Quality is our culture and credibility is our primary principle in our business. So we constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers.





certification




Our Services



1.high precison high speed low friction

2.factory price

3.short delivery time (shenzhen port or guangdong port)

4.large stock is available

5.we can offer sample

6.many brands can choose and oem service

7.various payment terms(L/C,T/T,West Union,MoneyGram,Paypal)

8.we will find the perfect transportation ways for you

FAQ



1. How long is your delivery term?

Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.


2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.


3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.



Contact

Skype:cindy.chen125

whatsapp:+8615098917851

I am looking forward to receiving your enquires soon .^ - ^

Contact us if you need more details on 100122M Self Aligning Ball Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Self Aligning Ball Bearing 100122M、Self Aligning Ball Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
