China factory High quality GE70ES rod end bearing

Product Description

Our main products:

Brief introduction

Radial Spherical plain bearings are design to cater to all heavy loading equipments. Plain bearings

are able to cater to various sliding contact surfaces; Steel/PTFE composite material and Steel/PTFE

fabric material. Range of production range from ID15mm to ID250mm.



Rod end bearings classify by GB/T9161 standard:

1.Curved rod tee joint rod end bearings ( type code : SQ);

2.Straight tee joint rod end bearings ( type code : SQZ);

3.single rod tee joint rod end bearings ( type code : SQD) ;

4.left-handed internally-threaded rod end bearing assembly ( type code : SLLB);

5.L externally threaded rod end bearing assembly ( type code : SALB);

6.L curved rod type rod end bearings ( type code : SLLB);

7.L single rod type rod end bearings ( type code : SQLD);

8.with cylindrical welded rod end bearings (cylindrical type) ( type code : SK);

9.with a flat base welded rod end ( square ) ( types codenamed : SF);

10.locking the rod end port type ( type code : SLR)

Feature

1.good quality and service
2.reasonable price
3.low friction and high speed
4.large stock
5.the most widely used bearing



Application

Joint Bearing is widely used in engineering hydraulic cylinder, forging machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery

industries.

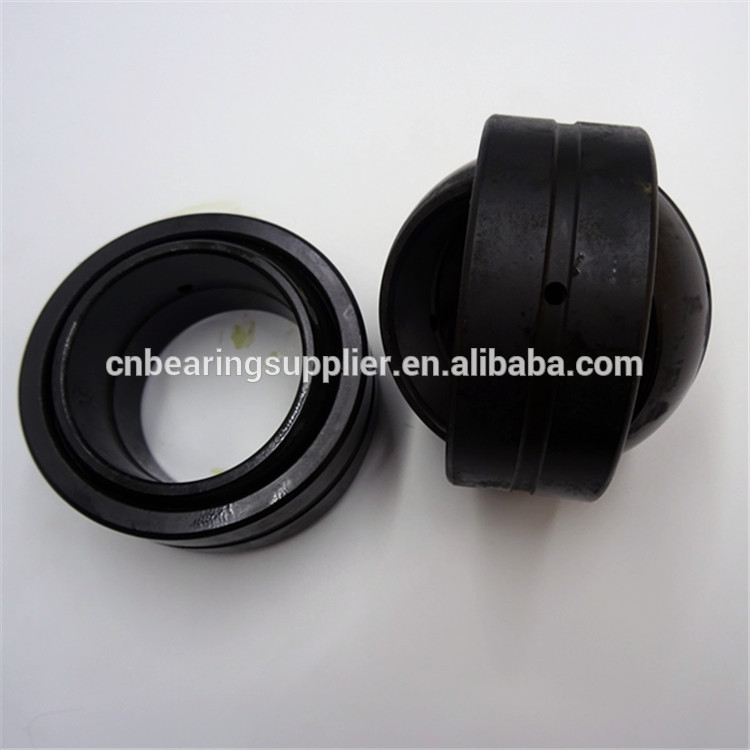

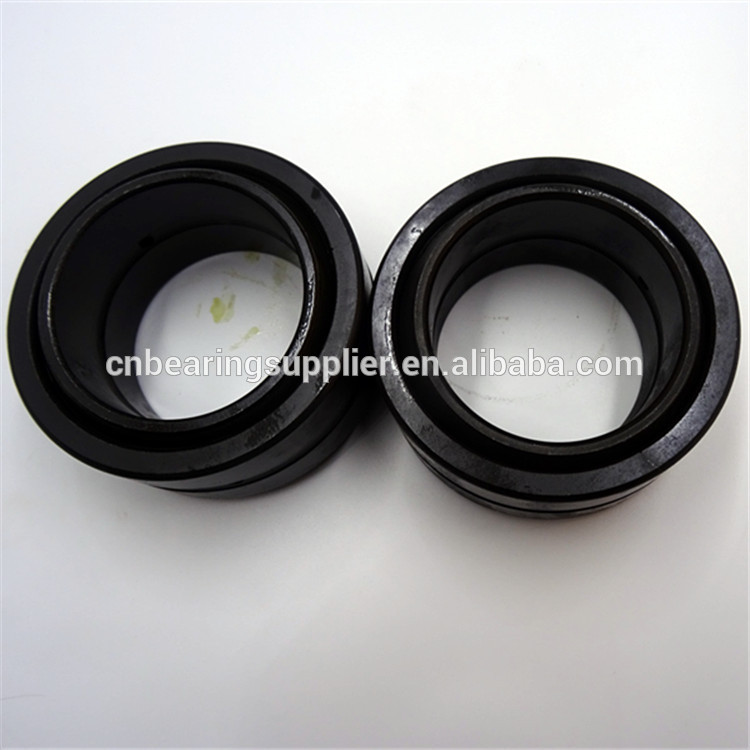

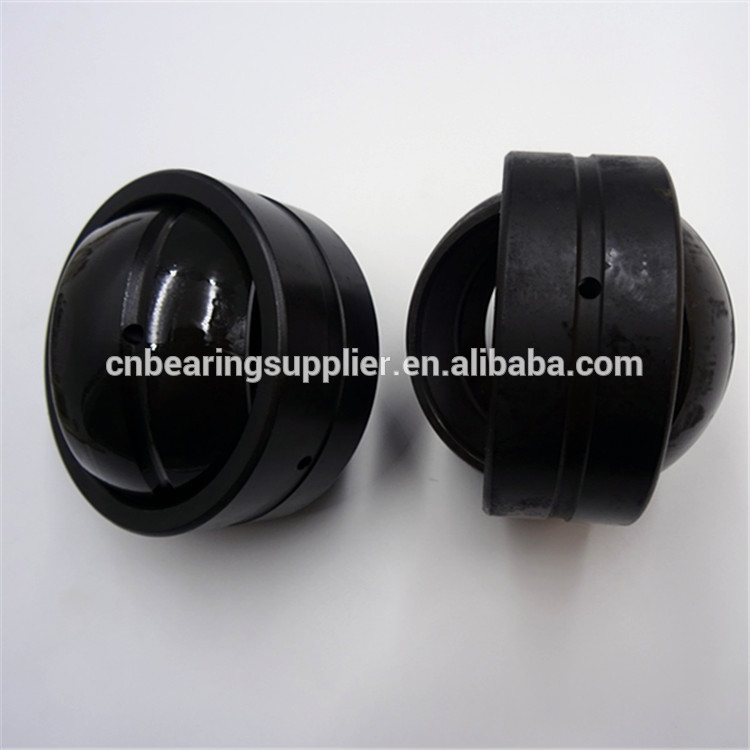

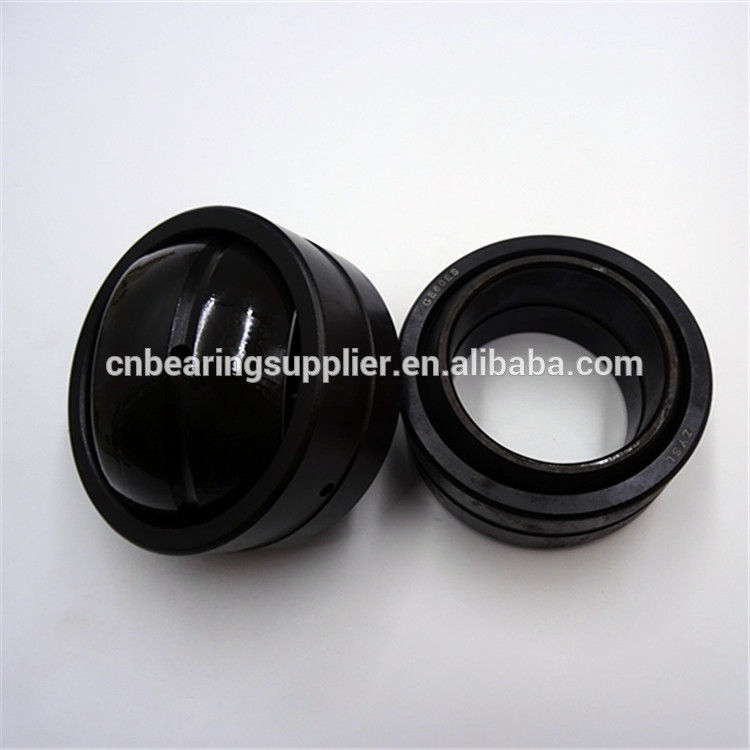

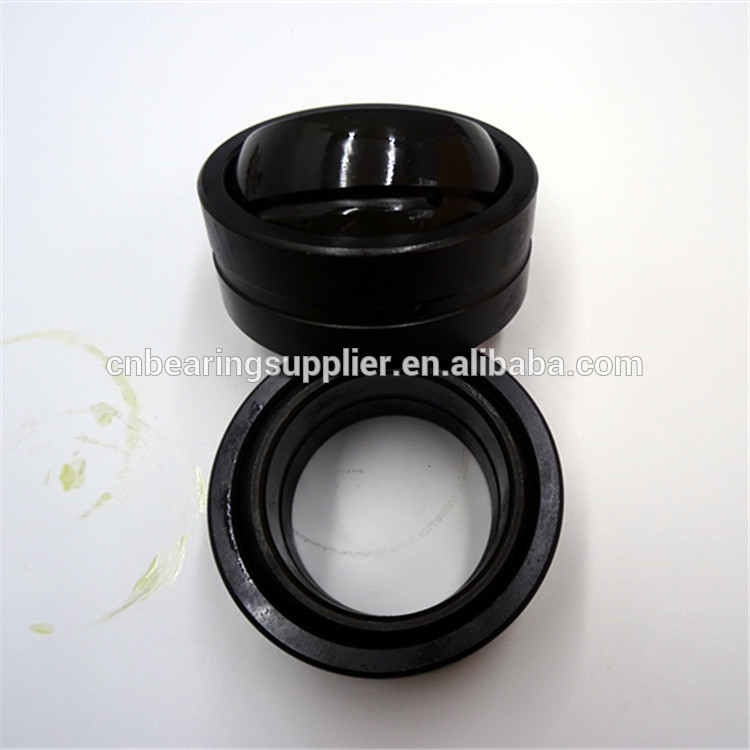

Photos:

Related models and specifications of Rod End Bearing:

Bearing No. Dimension(mm) Ball Dia Load ratings(KN) Weight
d B C1 d1 d2 d3-6g h L1 L2 C Co ≈Kg
H7
NPOS5 5 8 6 7.7 16 M5 33 20 41 11.11 2.5 4.6 0.012
NPOS6 6 9 6.75 8.9 18 M6 36 22 45 12.7 3.2 6.9 0.019
NPOS8 8 12 9 10.3 22 M8 42 25 53 15.87 5.4 12.6 0.032
NPOS10 10 14 10.5 12.9 26 M10 48 29 61 19.05 7.5 16.6 0.054
NPOS12 12 16 12 15.4 30 M12 54 33 69 22.22 10 22 0.085
NPOS14 14 19 13.5 16.8 34 M14 60 36 77 25.4 13 27.8 0.126
NPOS16 16 21 15 19.3 38 M16 66 40 85 28.58 16 34.5 0.185
NPOS18 18 23 16.5 21.8 42 M18X1.5 72 44 93 31.75 19.5 40.8 0.26
NPOS20 20 25 18 24.3 46 M20X1.5 78 47 101 34.92 23 46.5 0.34
NPOS22 22 28 20 25.8 50 M22x1.5 84 51 109 38.1 29 52.6 0.435
NPOS25 25 31 22 29.5 60 M24x2 94 57 124 42.86 40.5 74.1 0.65
NPOS28 28 35 25 32.29 66 M27x2 103 62 136 47.63 46.1 88.7 0.875
NPQS30 30 37 25 34.8 70 M30x2 110 66 145 50.8 54.3 94 1.07

PHS series Rod end ball joint bearing

Type Dimension(mm) Load(KN) Weight
d d3 B C1 L3 W d2 d1 h1 L4 L5 d4 d5 dk a Dynamic Static
           if it is left-hand thread, bearing type need to add "L", for example: PHSL 8 C C0 kg
PHS5 5 M5x0.8 8 6 10 9 16 7.7 27 35 4 8.5 11 11.1 13 3.25 5.7 0.02
PHS6 6 M6x1.0 9 6.75 12 11 18 8.96 30 39 5 10 13 12.7 13 4.3 7.2 0.02
PHS8 8 M8x1.25 12 9 16 14 22 10.4 36 47 5 12.5 16 15.9 14 7.2 11.6 0.05
PHS10 10 M10x1.5 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.1 13 10 14.5 0.08
PHS10-1 10 M10x1.25 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.1 13 10 14.5 0.08
PHS12 12 M12x1.75 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.2 13 13.4 17 0.1
PHS12-1 12 M12x1.25 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.2 13 13.4 17 0.1
PHS14 14 M14x2.0 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 16 17 24 0.16
PHS14-1 14 M14x1.5 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 16 17 24 0.16
PHS16 16 M16x2.0 21 15 28 22 40 19.4 64 84 8 22 27 28.6 15 21.6 28.5 0.22
PHS16-1 16 M16x1.5 21 15 28 22 40 19.4 64 84 8 22 27 28.6 15 21.6 28.5 0.22



Company Information

Jinan ZYSL bearing Co., Ltd.are manufacturer and supplier from Jinan Shandong China , Which is on the line of bearing for more than 20 years experience .We integrate R&D,production and export of bearings.

So one of our biggest advantage compared others is that we can provide the best factory price based on the same good quality.Our employees are all received professional training.

And until now we has established a professional sales network to help customers get products information at the first time.Besides our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.The annual production capability is more than 960 million units.Quality is our culture and credibility is our primary principle in our business. So we constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers.



payment

Small orders:

A:100% T/T

B:Western Union

C:Paypal

Large orders:

D:30% T/T in advance, 70% against copy of B/L

Packaging & Shipping

MOQ IS ONE PIECE

TERMS OF PAYMEMT: T/T

SAMPLE AVAILABLE

PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT

SHIPMENT: Logistics forwarder or Express service, according to quantity

Delivery time: 3-15 days according to quantity required

Quality: Export standard

Price term: FOB


certification


production process


contact person

Skype:cindy.chen125

whatsapp:+8615098917851

I am looking forward to receiving your enquires soon .^ - ^

FAQ



1. How long is your delivery term?

Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.


2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.


3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.



Contact us if you need more details on GE70ES Rod End Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about GE70ES Rod End Bearing、GE70ES Rod End Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
