GIR17UK 2RS Long Life Rod Ends Bearing

Product Description

GIR17UK 2RS Long Life Rod Ends BearingOur main

The related bearings type:

Description of Rod Ends Bearing:



A Joint Bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.


Rod End Bearing mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision

instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery

industry, the most common kind of bearing.


The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and

hardness equivalent to that of steel Ball Bearings. It provides very smooth rotating and oscillating

motion without play.

Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner,

inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a

nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and

dismounting and mechanism simplification.

Specifications of Rod Ends Bearing:

Product Name Rod End Bearing
Precision Rating P0, 60, P5, P4, P2
Material Bearing Steel  (GCr15)
Clearance C0 C1 C2 C3 C4 C5
Vibration & Noisy Z1,Z2,Z3 V1,V2,V3
Seal 2RS, RS
Features High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification ISO 9001:2008
Packing 1.Neutral Packing Bearing  2.Industrial Packing  3.Commercial Packing Bearing  4.Customize
Delivery Time 30 - 45 Days After The Order is Confirmed
Shippment 1.By Sea  2.By Air  3.By Express

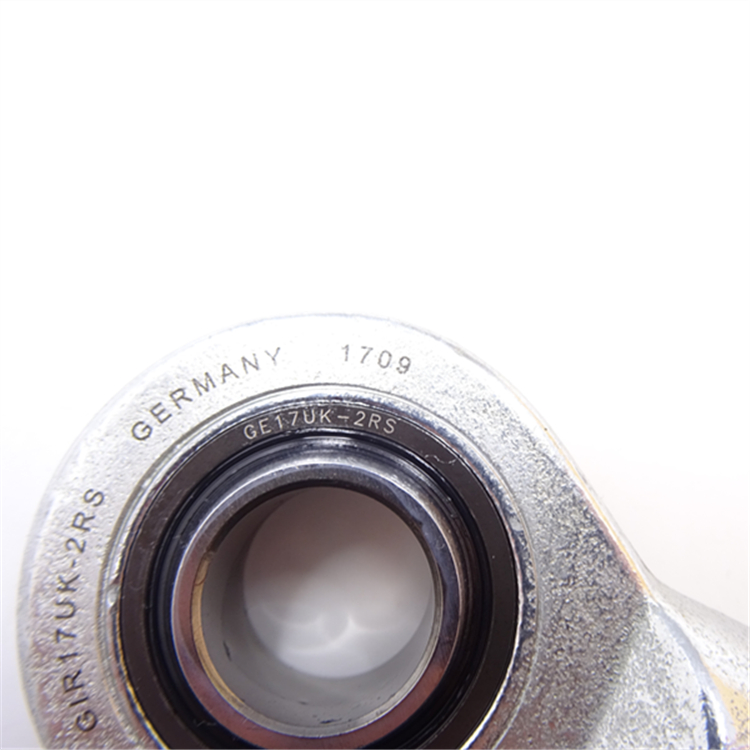

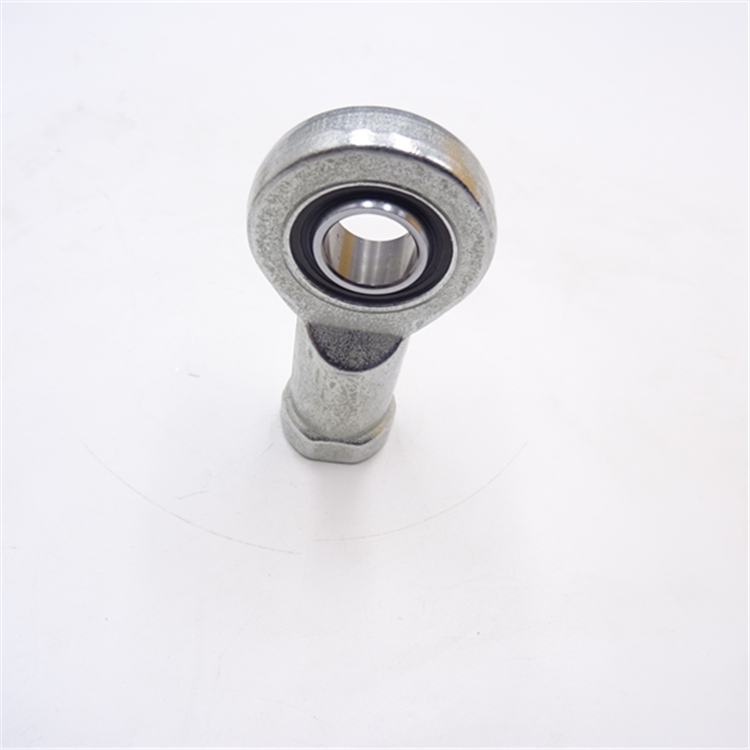

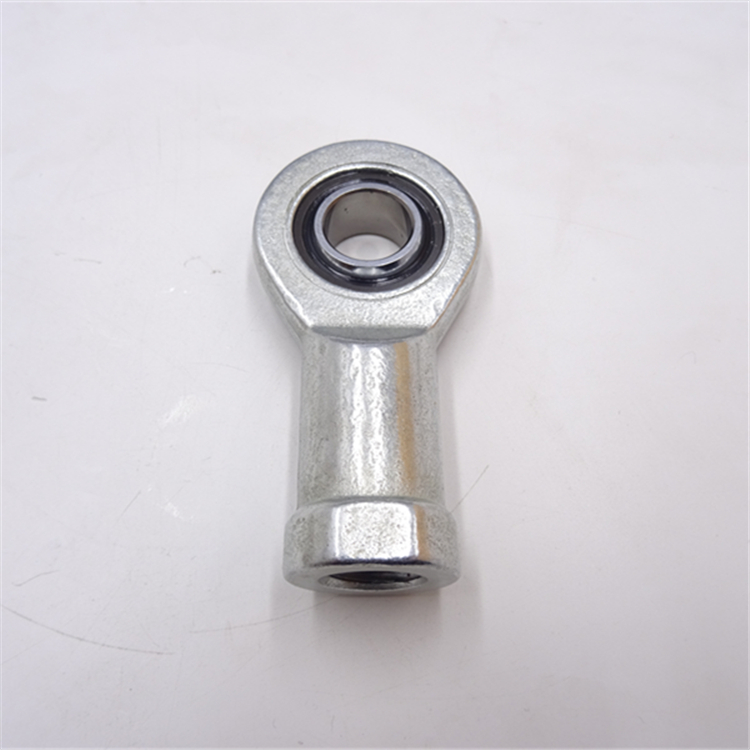

Photos of Rod Ends Bearing:

Related models

ITEM Dimension  (mm) Weight
 Right hand  Lift hand  d d3 B C1 L3 W d2 h1 L4 L5 d4 d5 dK a kg
      6H     min
GIR17UK 2RS GIL17UK 2RS 17  M16x2.0 14 11 34 27 46 67  90 10 24 30 25 10 0.22
GIR20UK 2RS GIL20UK 2RS 20  M20x1.5 16  13  40  32  53  77  103.5  10  27.5  35  29  0.35
GIR25UK 2RS GIL25UK 2RS 25  M24x2.0 20 17  48  36  64  94  126   12 33.5  42  35.5  7 0.64
GIR30UK 2RS GIL30UK 2RS 30  M30x2.0 22  19  56 41  73  110  146.5  15  40  50  40.7  0.93
GIR35UK 2RS GIL35UK 2RS 35  M36x3.0 25  21 60  50  82  125  166  15  47   58 47 1.3
GIR40UK 2RS GIL40UK 2RS 40  M39x3.0 28  23  65 55  92  142  188  18  52  65  53  2
GIR40-1UK 2RS GIL40-1UK 2RS 40  M42x3.0 28  23  65 55  92  142  188  18  52  65  53  1.96
GIR45UK 2RS GIL45UK 2RS 45  M42x3.0  32 27  65 60 102 145  196  20  58  70   60 2.5
GIR45-1UK 2RS GIL45-1UK 2RS 45  M45x3.0 32  27  65 60 102  145  196  20  58  70  60  2.44
GIR50UK 2RS GIL50UK 2RS 50  M45x3.0 35  30 68 65 112  160  216  20  62  75  66  6 3.5
GIR50-1UK 2RS GIL50-1UK 2RS 50  M52x3.0 35  30  68  65  112  160  216  20  62  75  66  3.4
GIR60UK 2RS GIL60UK 2RS 60  M52x3.0 44 38  70  75  135  175  242.5 20  70  88  80  5.5
GIR60-1UK 2RS GIL60-1UK 2RS 60  M60x4.0 44  38  70  75  135  175  242.5  20  70  88  80  5.38
GIR70UK 2RS GIL70UK 2RS 70  M56x4.0 49 42  80 85 160  200  280  20  80 98  92 8.6
GIR70-1UK 2RS GIL70-1UK 2RS 70  M72x4.0 49  42  80  85  160  200  280  20  80  98  92  8.42
GIR80UK 2RS GIL80UK 2RS 80  M64x4.0 55 47 85  100  180 230  320  25  95  110 105  12
GIR80-1UK 2RS GIL80-1UK 2RS 80  M80x4.0 55 47  85  100  180  230  320  25  95 110  105  11.8



Company Information

Jinan ZYSL bearing Co., Ltd.are manufacturer and supplier from Jinan Shandong China , Which is on the line of bearing for more than 20 years experience .We integrate R&D,production and export of bearings.

So one of our biggest advantage compared others is that we can provide the best factory price based on the same good quality.Our employees are all received professional training.

And until now we has established a professional sales network to help customers get products information at the first time.Besides our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.The annual production capability is more than 960 million units.Quality is our culture and credibility is our primary principle in our business. So we constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers.



payment

Small orders:

A:100% T/T

B:Western Union

C:Paypal

Large orders:

D:30% T/T in advance, 70% against copy of B/L

Packaging & Shipping

MOQ IS ONE PIECE

TERMS OF PAYMEMT: T/T

SAMPLE AVAILABLE

PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT

SHIPMENT: Logistics forwarder or Express service, according to quantity

Delivery time: 3-15 days according to quantity required

Quality: Export standard

Price term: FOB

certification


production process



FAQ



1. How long is your delivery term?

Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.


2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.


3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

contact person

I am looking forward to receiving your inquiry soon .^ - ^

Contact us if you need more details on Rod Ends Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Rod Bearing、GIR17UK 2RS Rod Ends Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
